Dab tsi yog cov roj teeb muaj zog ntau lithium-ion? Yam koj yuav tsum paub

Txoj kev caij tsheb kauj vab hluav taws xob, cov hluav taws xob cov teeb hluav taws xob tau muaj hluav taws xob kev txaus siab tau txais kev txaus siab lithium-ion roj teeb. Cov roj teeb no tau tsim los khaws ntau lub zog, ua rau siv tau ntxiv yam tsis muaj kev rov qab siv dua. Txawm hais tias koj muaj hwj chim siv Ebike rau txhua hnub lossis chaw pw hav zoov rau cov teeb meem kev taug txuj kev nyuaj, nkag siab txog cov peev txheej muaj peev xwm siab yog qhov tseem ceeb. Kab lus no piav qhia qhov muaj peev xwm tshaj plaws ntawm kev ua lag luam thiab cov kev nkag siab los pab koj xaiv cov roj teeb uas phim koj cov kev cai tshwj xeeb.

Dab tsi yog "muaj peev xwm siab tshaj plaws" txhais tau tias muaj roj teeb lithium-ion?

Roj teeb muaj peev xwm ntsuas cov nyiaj fais fab muaj peev xwm khaws, feem ntau yog qhia hauv Milliampere-teev (MHAth) rau cov neeg lub hlwb lossis cov khoom siv) rau cov tshuab loj. Lub zog roj teeb muaj zog ntau dua rau nws qhov loj me lossis qhov hnyav, ua rau nws zoo tagnrho rau cov ntawv thov runtimes.

Tshaj muaj peev xwm, lwm yam cuam tshuam nrog kev ua tau zoo:

• Kev tso tawm tam sim no (ntsuas hauv amps, lossis chancess mus ntaus nqi, cdr): txiav txim seb lub zog roj npaum li cas tuaj yeem xa tau ib zaug.
• Nominal voltage: feem ntau 3.6V-3.7v rau cov kua qaub.
• Lub neej voj voog: Tus naj npawb ntawm cov nqi xa tawm ua ntej muaj peev xwm.
• Zog ntom ntom: lub zog khaws cia rau ib chav phaus (watt-teev ib phaus, wh / kg).

Cov khoom siv roj teeb

• Cylindrical: ib txwm muaj ntau thiab 18650, 21700, thiab 32650, dav siv hauv ebikes thiab cov khoom siv portable.
• Prismatic: Cov duab plaub fab haum rau hluav taws xob tsheb thiab lub zog cia.
• Hnab: hloov pauv tau, lub teeb yuag rau cov hlwb rau cov khoom siv hluav taws xob kev sib xyaw.

Txhua cov qauv ntawv sib npaug, qhov loj me, thiab daim ntawv thov xav tau sib txawv.

Sab saum toj cov peev txheej hnyav lithium-ion hauv kev ua lag luam

Hauv qab no, peb tau npaj siab ntau tshaj plaws cov muaj peev xwm-ion hlwb muaj, tsom mus rau lawv cov kev qhia tshwj xeeb thiab cov kev siv cov kev siv hluav taws xob, tshwj xeeb rau cov hluav taws xob hluav taws xob.

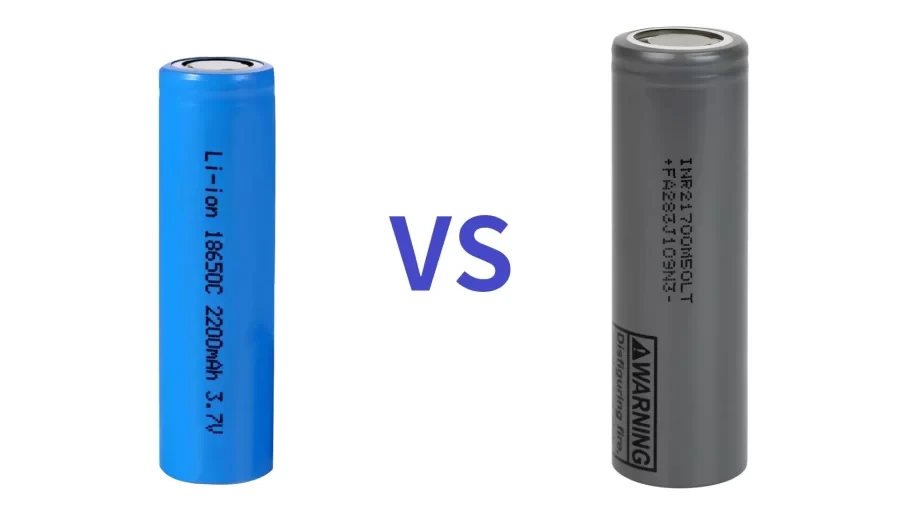

18650 lub hlwb

Cov lus qhia tshwj xeeb:

• Lub peev xwm: Txog li 3600mAh.
• Nominal voltage: 3.6V-3.7V.
• Nruam tawm tam sim no: 5-10A.
• Zog ntom: kwv yees li 250 wh / kg.

Qhov Zoo:

• Versatile rau Ebikes, teeb nyem, thiab cov khoom siv hluav taws xob tsawg.
• Raug nqi thiab siv tau zoo.

Txwv:

• Muaj peev xwm txwv rau ib ncig ntawm 3600mAh; siab dua cov lus thov yog feem ntau tsis lees paub.
• Cov nqi qis dua yuav tsis haum cov kev siv hluav taws xob muaj zog.

21700 hlwb

Cov lus qhia tshwj xeeb:

• Muaj peev xwm: txog 5000mAh.
• Nominal voltage: 3.6V-3.7V.
• Nruam kev tshem tawm tam sim no: 10-60a, nyob ntawm tus qauv.
• Zog ntom: kwv yees li 270 wh / kg.

Qhov Zoo:

• Muaj peev xwm dua thiab cov nqi tawm mus ua rau lawv haum rau Ebikes, hluav taws xob hluav taws xob, thiab cov cuab yeej hluav taws xob.
• Txhim kho lub zog ntom ntom rau ntev dua.

Txwv:

• Qhov loj me me me yuav tsis haum cov cuab yeej tsim rau 18650 lub hlwb.
• Me ntsis siab dua tus nqi ib cell.

32650 & lwm cov hlwb loj

Cov lus qhia tshwj xeeb:

• Lub peev xwm: 5000-6500mah lossis siab dua.
• Nominal voltage: 3.2V-3.7V (sib txawv (sib txawv ntawm Chemistry).
• Nruam tawm mus tam sim no: 5-20a.
• Zog ntom: kwv yees li 200 wh / kg.

Qhov Zoo:

• Muaj peev xwm rau lub zog cia cov tshuab, hluav taws xob hluav taws xob, thiab kev siv khoom lag luam.
• Muaj zog rau kev siv hnyav.

Txwv:

• Bulky thiab hnyav, tsawg dua rau cov cuab yeej siv hluav taws xob zoo li ebikes.
• Muaj kev txwv tsis pub muaj nyob rau hauv cov kev ua tau zoo variants.

Piv lub rooj

Yam uas cuam tshuam roj teeb muaj peev xwm thiab kev ua tau zoo

Ntau yam kev txiav txim siab yuav ua li cas lub roj teeb ua nyob rau hauv cov mob tiag tiag:

• Qhov loj me thiab cov qauv: cov hlwb loj tuaj yeem khaws ntau lub zog tab sis hnyav thiab ntim.
• Chemistry:

1. Lithium Iron phosphate (LIFEPO4): Muaj kev nyab xeeb kom muaj kev nyab xeeb thiab nce mus txog 2000 toj siab tab sis qis zog zog (~ 150 wh / kg).
2. Nickel Manganese cobalt (NMC): Lub Zog Hluav Taws Xob (~ 250-270-270-27-2

• Qhov tob ntawm tso tawm (DOD): Siv tag nrho cov peev txheej txhua lub voj voog txo lifespan piv rau qee ntu kev rho tawm.
• Temperature: Extreme heat (>45 degree) lossis txias (<0°C) can reduce capacity and accelerate wear.
• Them cov kev coj ua: overcharging, dhau-tawm, lossis khaws cia ntawm kev them nqi tag nrho tuaj yeem ua rau muaj peev xwm degrade.
• Kev laus: Muaj peev xwm tsis lees txais sijhawm, txawm tias muaj kev tu kom zoo.
• Mislabeling txaus ntshai: qee cov cell, tshwj xeeb tshaj yog 18650s thov tshaj 3600mah, tej zaum yuav muaj peev xwm ua rau tsis zoo, muaj peev xwm ua rau kev ua phem.

Yog siab dua yog zoo dua?

Thaum lub caij roj teeb loj txuas ntxiv mus rau Runtime, lawv tsis yog thoob ntiaj teb:

• Qhov hnyav thiab qhov loj me: cov peev xwm loj feem ntau txhais tau tias cov roj teeb hnyav, cov roj teeb ntau dua, uas tuaj yeem cuam tshuam rau kev nkag mus Ebike.
• Them lub sijhawm: Lub peev txheej siab dua yuav tsum tau them nyiaj ntev dua, uas yuav tsis yooj yim rau cov caij nyoog nquag.
• Kev tswj hwm thaum kub: Cov hlwb muaj peev xwm ntau hauv qab cov nra hnyav tsim ntau lub tshav kub ntxiv, xav tau kev tswj roj teeb lub tshuab hluav taws xob ntau dua (BMS).
• Kev txwv kev tawm tsam: Qee lub hlwb muaj peev xwm muaj cov nqi tawm qis, tsis tsim nyog rau cov muaj zog Ebike lub roj teeb.

Rau cov hluav taws xob hluav taws xob, cov roj teeb zoo tshaj plaws muaj peev xwm, kev xa tawm tus nqi, thiab sib raug zoo nrog koj lub cev muaj zog thiab caij cov qauv.

Daim Ntawv Thov Kev Ua Si Ntawm Cov Roj Teeb Loj Lithium Roj teeb

Cov roj teeb muaj zog lithium-ion pab ntau yam kev xav tau:

• Fais fab kauj vab: txuas ntxiv mus los yog kev ua si, txo cov nqi them zaus.
• Portable Fais Fab: Lub tsev txhab nyiaj fais fab thiab chaw pw hav zoov muab lub zog txhim khu kev qha rau kev ua si sab nraum zoov.
• Lub zog cia: tsev thiab kev ua tshuab khw hnub ci lossis cua lub zog rau cov khoom siv hluav taws xob zoo ib yam nkaus.
• Cov Khoom Siv Tshwj Xeeb: Cov khoom siv kho mob, drones, thiab kev sib txuas lus tshuab cia siab rau kev cog lus, muaj peev txheej siab.

Rau cov neeg siv Ebike, roj teeb muaj peev xwm txhais tau ntau dua thiab muaj peev xwm ntau dua, tshwj xeeb tshaj yog rau kev taug kev ntev lossis sab nraud.

Yuav ua li cas xaiv txoj kev muaj peev txheej roj teeb rau koj cov kev xav tau

Xaiv cov roj teeb zoo rau koj lub tsheb kauj vab hluav taws xob lossis lwm yam khoom siv cuam tshuam nrog cov kauj ruam no:

Ntsuam xyuas koj cov kev xav tau:

Xam cov kev xav tau hluav taws xob: Watt-teev (wh)=voltage (u) × ah muaj peev xwm (ah).

Txiav txim siab yog tias runtime (muaj peev xwm) lossis siv zog tawm (kev tawm mus kuaj) yog qhov tseem ceeb.

Xyuas kom meej:

Match voltage, tam sim no, thiab lub cev loj rau koj lub cuab yeej cov kev qhia tshwj xeeb.

Paub meej txuas cov hom thiab BMS sib txuam.

Tsom ntsoov rau qhov zoo:

Xaiv rau cov cell los ntawm cov tuam ntxhab ntseeg nrog cov ntawv pov thawj kev nyab xeeb (piv txwv li ul, CE).

Zam kev mob hlwb nrog qhov tsis muaj peev xwm thov.

Xaiv cov hlwb thiab pob:

Cov neeg lub hlwb yog qhov tsim nyog rau DIY Ebike cov haujlwm.

Npaj ua ntej lub rooj sib tham cov pob roj teeb (piv txwv li, 36V lossis 48v) muab kev yooj yim rau cov qauv eBike.

Xav txog cov qauv tsim qauv:

Ntau dua Volorage nruab nrab (piv txwv li, 48v) yuav txhim kho kev ua tau zoo tab sis yuav tsum tau siv cov controllers thiab lub cev.

Lub peev xwm loj dua tab sis ntxiv qhov hnyav.

Lub neej tom ntej hauv Lithium-Ion Roj Teeb Muaj peev xwm

Kev lag luam roj teeb yog nce zuj zus mus ntsib kev loj hlob:

• Cov roj teeb-lub luag haujlwm: Xav kom muaj zog dua thiab txhim kho kev nyab xeeb, nrog kev lag luam muaj nyob rau hauv lub xyoo tom ntej.
• Cov Khoom Siv Ua Si: Cov pob zeb-ua haujlwm anodes tuaj yeem ua kom muaj peev xwm muab piv rau cov tsoos graphite.
• Ntse BMS: Txhim kho lub tshuab yuav txhim kho kev tswj hwm tus nqi, kev nyab xeeb, thiab kev nyab xeeb.
• Cov Kev Pab Cuam Tshuam: Cov khoos kas ua dua tshiab thiab cov ntaub ntawv hauv eco cov ntaub ntawv ua kom muaj kev cuam tshuam ib puag ncig.

Cov kev hloov tshiab no yuav tau txiaj ntsig Ebike cov neeg siv nrog sib dua, ntev dua-ntev li cov roj teeb.

Cov Lus Nug

Q: Dab tsi yog qhov muaj peev xwm ntau tshaj 18650 roj teeb muaj?

A: Qhov siab tshaj plaws txhim khu kev qha yog kwv yees li 3600mAh. Cov lus thov siab dua yuav tsum tau txav mus kom ze nrog kev ceev faj.

Q: Kuv puas tuaj yeem hloov kuv lub roj ntsha Ebike nrog lub peev txheej siab dua ib qho?

A: Yog, muab lub voltage, tam sim no, thiab loj yog sib xws nrog koj ebike lub system. Yeej ib txwm xyuas cov specifications.

Q: Qhov peev txheej muaj peev xwm muaj peev xwm muaj peev xwm muaj peev xwm muaj peev xwm muaj peev xwm dua kuv tus eBike?

A: Yog tias qhov hluav taws xob lossis qhov tam sim no tshaj koj qhov kev txwv Ebike, nws tuaj yeem ua rau muaj kev kub ntxhov lossis kev puas tsuaj. Xyuas kom haum.

Q: Kuv tuaj yeem txheeb xyuas lub roj teeb muaj peev xwm li cas?

A: Siv cov roj teeb roj teeb kom ntsuas kev tawm ntawm tus qauv muaj peev xwm (piv txwv li, {{{}}. 2c) kom txog rau thaum cutoff voltage.

Q: Dab tsi yog qhov txawv ntawm qhov muaj peev xwm thiab lub zog tawm?

A: Peev (Mah / KWh) ntsuas khaws lub zog; Lub zog tso zis (A / W) qhia tias yuav tau txais hluav taws xob sai npaum li cas.

Tag

Cov roj teeb Lithium-ion yog cov khoom siv hluav taws xob tseem ceeb rau cov tshuab hluav taws xob thiab lwm yam khoom siv hluav taws xob, muaj peev xwm ua tau tsav tsheb ntev dua thiab ua tau zoo. Txawm li cas los xij, lub peev xwm tsuas yog ib qho ntawm cov ntsiab lus rau lub roj teeb. Xaiv lub roj teeb uas ua tau raws li qhov hluav taws xob, tam sim no thiab lub cev uas muaj hluav taws xob hluav taws xob yog qhov tseem ceeb sib luag.

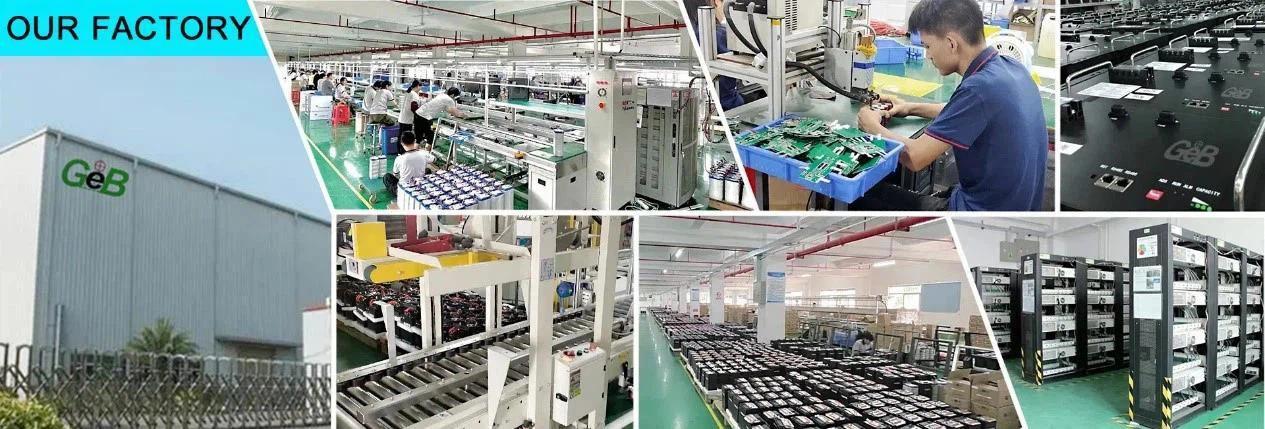

Ntawm geB, peb tau tshaj lij nyob rau hauv kev tsim cov ntau lawm thiab kev tsim khoom siv thev naus laus zis ntawm ntau hom roj teeb. Xws li cov roj teeb ternary (NCM lossis NCA) thiab cov hlau phosphate roj teeb (LFP). Vim tias lub zog siab ntom ntawm hom roj teeb no, ternary hlau phosphate roj teeb ntawm kev nyab xeeb ntawm kev nyab xeeb thiab tus nqi zoo. Ib qho ntxiv, GeB tau txais ib txheej txheem yas tshiab. Ua tsaug rau lub ntuj rwb thaiv tsev thiab tshuaj lom neeg tiv thaiv cov yas, kev nyab xeeb ntawm lub roj teeb mchule yog tau ua tau zoo dua-kub ua tau zoo. Tiv tauj peb tam sim no kom paub ntau ntxiv txogHluav Taws Xob Hluav Taws Xob Hluav Taws Xob. ( sales@gebattery.co )
